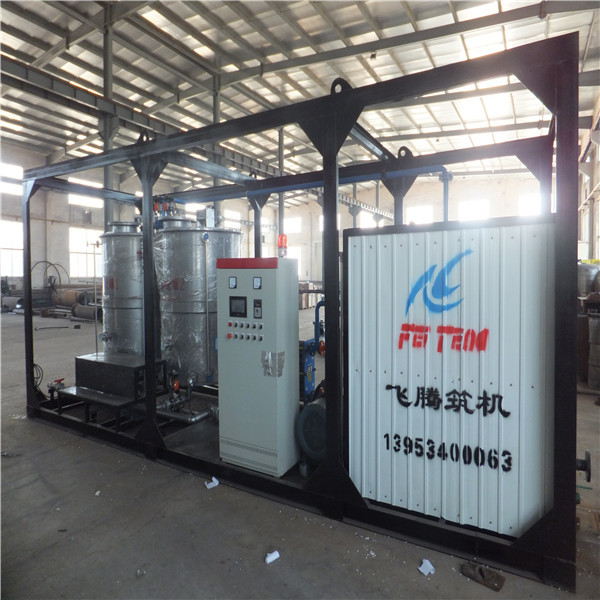

Emulsion Blending Tank High Density Rock Wool Insulation Bitumen Emulsion Plant With Customized Color
Description
The main function is that the melted asphalt go through the emulsifier and the mechanical action to form an emulsion asphalt, it could be uniformly dispersed in an aqueous solution containing an appropriate amount of emulsifier.
Features
Model GRL-6
Emulsified asphalt type and output
20-65% Ordinary emulsified asphalt
30-60% Modified emulsified asphalt (latex permeation)
30-45% Emulsified SBS modified asphalt(except of SBS modified asphalt )
Capacity 4-6T/H
Emulsification fineness ≤5μm accounted for 85%
Advantages
1. Easy to install and move, simple and direct operation, cost effective equipment
2. Emulsifier and other materials added to improve the emulsion mixing system
3. Automatic control, correct operation, multiple protection functions, real time automatic accurate regulation of solid content
4. Corrosion resistant design, emulsifier and all soap overflow components are stainless steel or PPR
5. The construction requires highly modified emulsified asphalt adhesive layer (SBR latex modified or SBS modified highly viscous emulsified asphalt), permeable layer spraying, thin slurry sealing layer, micro surface (modified emulsified asphalt with solid content up to 63%), cold mix, cold regeneration, etc
| Item | Unit | Parameter | Remark |
| Main function | | Modified bitumen emulsion, normal bitumen emulsion | |
| Output | t/h | 10 | |
| Fineness | μm | 1-5 | |
| Bitumen range of content | % | 10-70 | |
| Dimension | m | 6.8×2.2×2.53 | 1×40 HQ Container design |
| Water heating way | | Thermal oil indirect heating | Thermal oil outside |
| Water tank volume | m³ | 3 | |
| Max soap tank volume | m³ | 1.4 | Per soap tank |
| Bitumen pump flow | m³/h | 5 | |
| Total power | kw | ＜42 | |
| Power supply requirements | | 380 V 50 Hz AC power supply | Copper Wire with 50m Cable > 25mm² |
| Thermal oil temperature | ℃ | 200-250 | |
| Thermal oil exchange surface in water tank | ㎡ | 7.15 | 40m (м) |
| Thermal oil volume | m³ | 0.08 | |
| Temperature tolerance | ℃ | ＜1℃ | |
| Content tolerance | % | ＜1% | |
Our advantages
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, mainly including asphalt melting equipment for drum/box/bag packing, asphalt tank, asphalt emulsion equipment and asphalt sprayer, also we have the big advantages as below,
1. Independent design and professional manufacturer.
2. Production capacity over 200 sets per year.
3. All equipments with compact structure, suitable for container load.
4. Select premium steel with high quality.
5. Complete production control with detailed record and video.
6. Our factory had passed ISO system authentication, including ISO9001, ISO 14001, OHSAS18001.
7. We manufacture our standard equipment, also welcome OEM and ODM.
Our service
Our factory, DEZHOU FEITENG ROAD CONSTRUCTION EQUIPMENT CO., LTD., specializes in designing and manufacturing asphalt equipment, you may get as below,
1. Design drawing as your requirement
2. Equipment solution as your real condition
3. Quality equipment as your order
4. Quick response as your time
5. Fast delivery as your demand
6. Complete warranty as your expect
Quality product, quick response and cost saving.
Delivery and shipping
1. Production time around 5-15 days per set
2. Suitable for 40 HQ container loading
3. Trade terms EXW, FOB, CFR, CIF
After sale service
1. Warranty one year
2. Online support service and video technical support
3. Free spare parts
4. Field installation, commissioning and training, field maintenance
